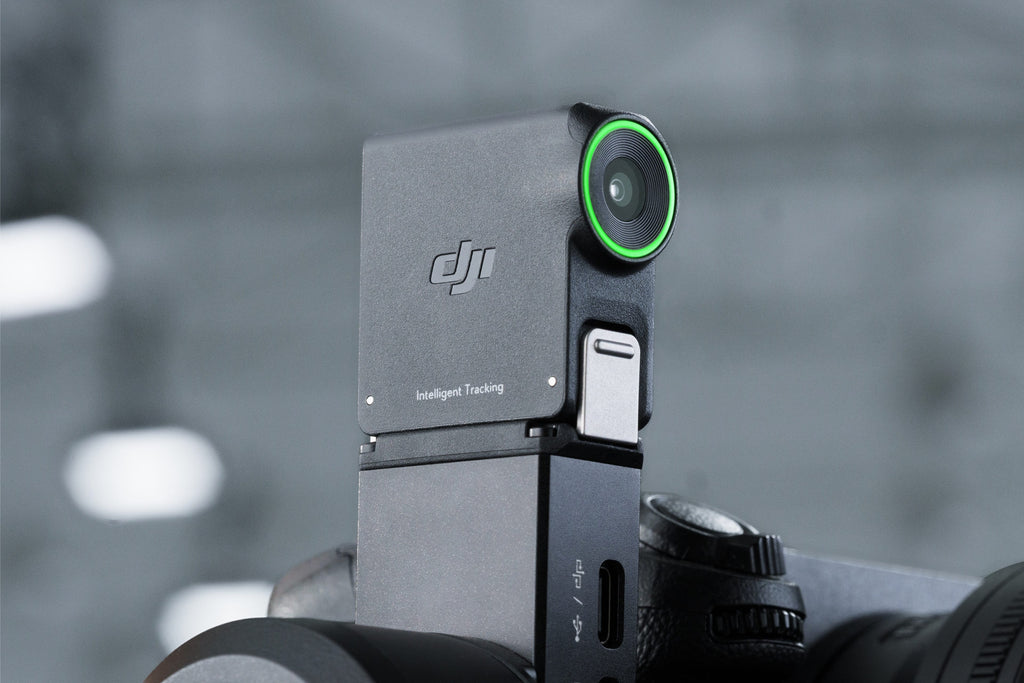

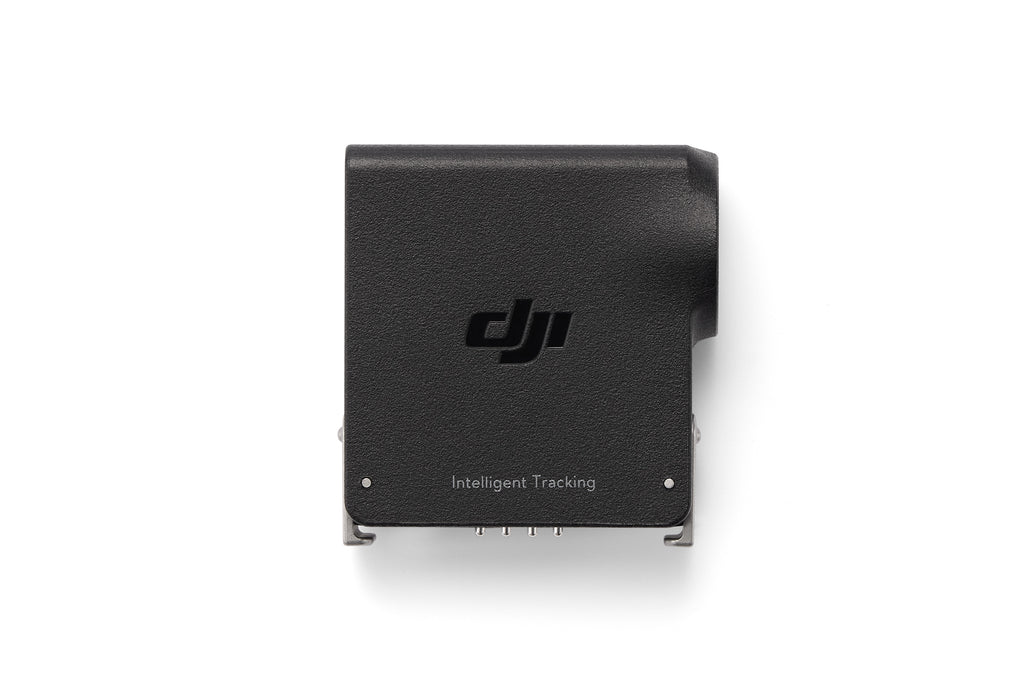

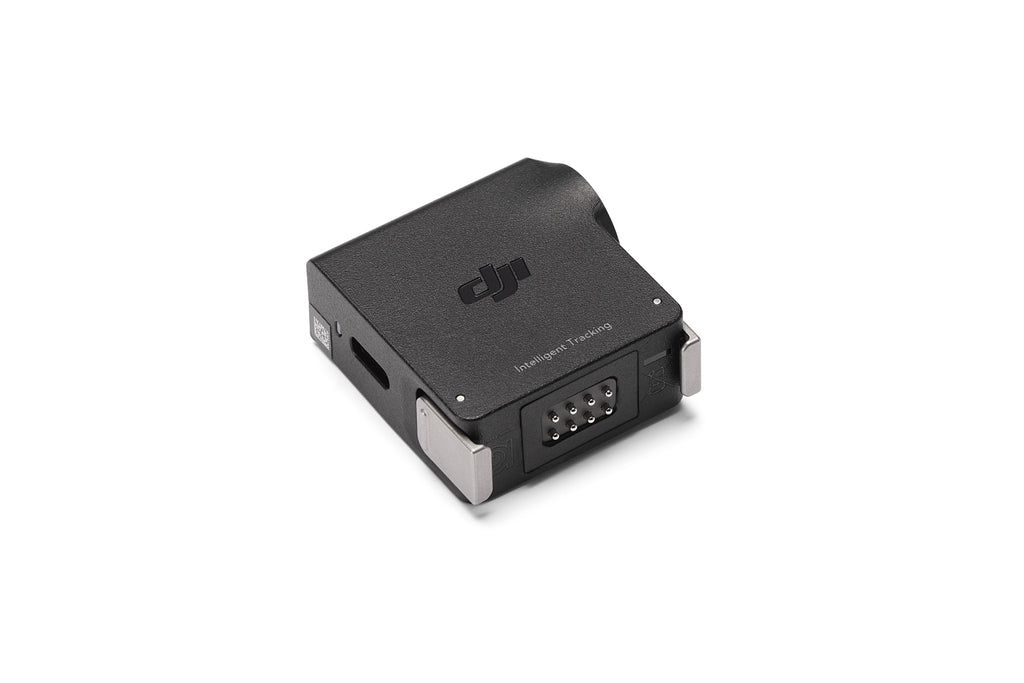

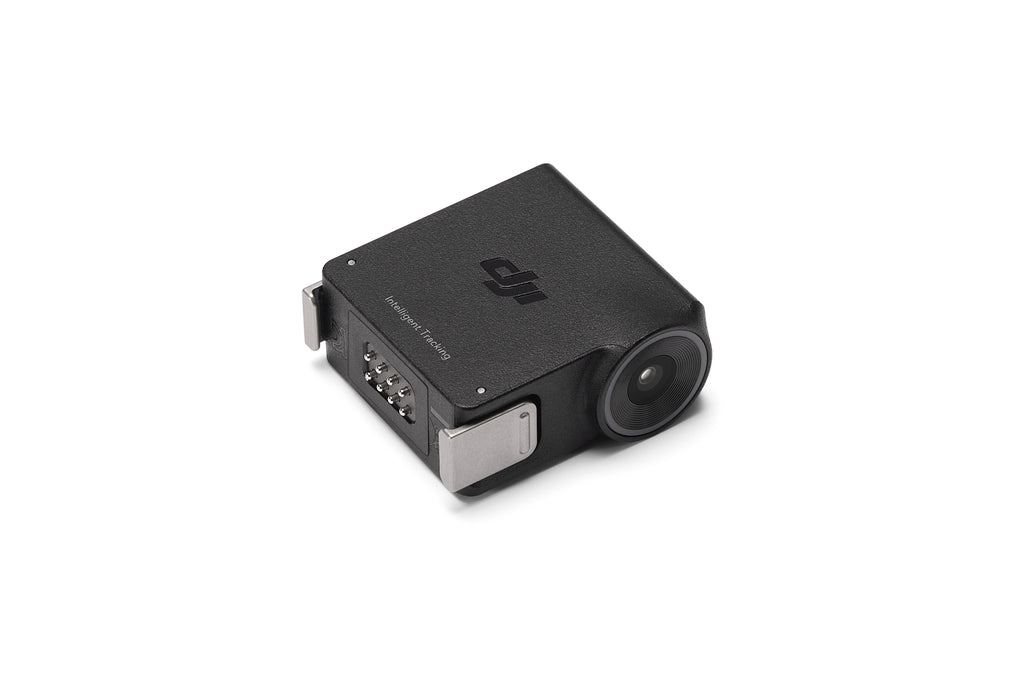

DJI RS Enhanced Intelligent Tracking Module

The RS Enhanced Intelligent Tracking Module enables smooth, intelligent subject tracking after a subject is selected directly from the gimbal’s touchscreen, keeping people, vehicles, pets, or other subjects precisely framed throughout every shot. Designed for solo creators and dynamic motion, it’s ideal for orbit shots, backward tracking, and fixed-position filming with consistent accuracy.

Tips

1. Attach the tracking module securely using the magnetic locking mechanism before powering on the gimbal.

2. For use with DJI RS 4, RS 4 Pro, or RS 4 Mini, ensure the gimbal firmware is updated to the latest version.

3. When using the Adapter Mount, the RSS port will be occupied and the camera control cable cannot be used simultaneously.

4. Tracking supports one recognizable subject only and performs best in environments without similar interfering targets.

In The Box

RS Enhanced Intelligent Tracking Module × 1
RS Intelligent Tracking Module Adapter Mount × 1

Specifications

Weight: Approx. 19 g
Dimensions: 35.9 × 17.5 × 38.5 mm (L × W × H)
Tracking Distance: 0.5–10 m
Operating Environment: Illuminance > 20 lux
Trigger Methods: Gimbal trigger, gesture, gimbal touchscreen
Gesture Functions: Start/stop tracking, start/stop recording, framing adjustment
Power Consumption: Approx. 1 W
Operating Temperature: -10° to 45° C (14° to 113° F)
Mounting Method: Magnetic attachment

Compatibility

DJI RS 5
DJI RS 4 Pro
DJI RS 4 Mini
DJI RS 4
